Product Overview

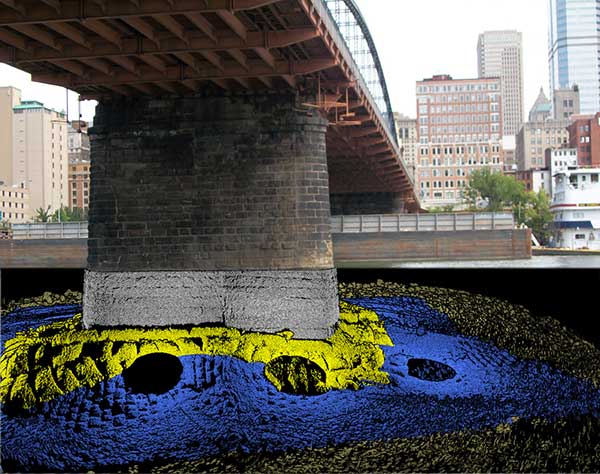

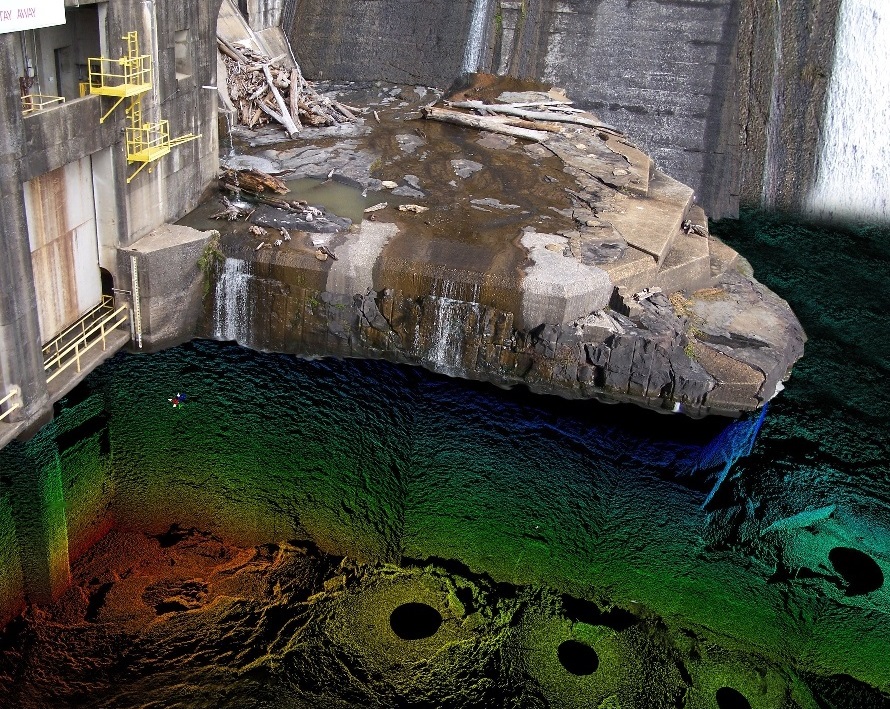

Teledyne Blueview's 3D Multibeam Scanning Sonar create high resolution, laser-like, imagery of underwater areas, structures and objects of interest, even in low to zero visibility conditions. The 3D system is simple to deploy, easy to operate, provides highly detailed 3D point clouds with minimal training from a tripod, an ROV, surface vessel or customized deployment solution. The BV5000 collects 3D point clouds without positioning, heading, pitch or roll information from a stationary platform and can collect motion compensated 3D point clouds using the MotionScan kit.

Key Features

  • .XYZi files are compatible with 3rd party survey software packages
  • Manually adjustable scan speed from 1-10 degrees a second
  • Standard Ethernet/RS485 interface
  • Easy Windows based software
  • Scan speeds from .5 to 10 degrees a second
  • ‚ÄčEasy, one touch scan function
  • 3D mosaic imaging with or without position info
  • Easily combined with laser scan imagery
  • Compact size fits into tight spaces
  • Operates in low & zero visibility conditions
Inclusions
  • 3D sonar head (1.35 MHz)
  • Pan & Tilt with mounting hardware
  • Sonar/Pan & Tilt junction box
  • Shipping case
  • Accessory Kit (Retract-A-Bit Hex Driver; 7 ft. Cat 5 Ethernet Cable; 25 ft. Sonar/Pan & Tilt Cable; 2 m USB Cable; 15A US Power Cord; RS485 to USB Driver CD;ProScan + BlueViewer)
  • BV5000 User Handbook
  • Quick Start Guide
  • 1 year warranty

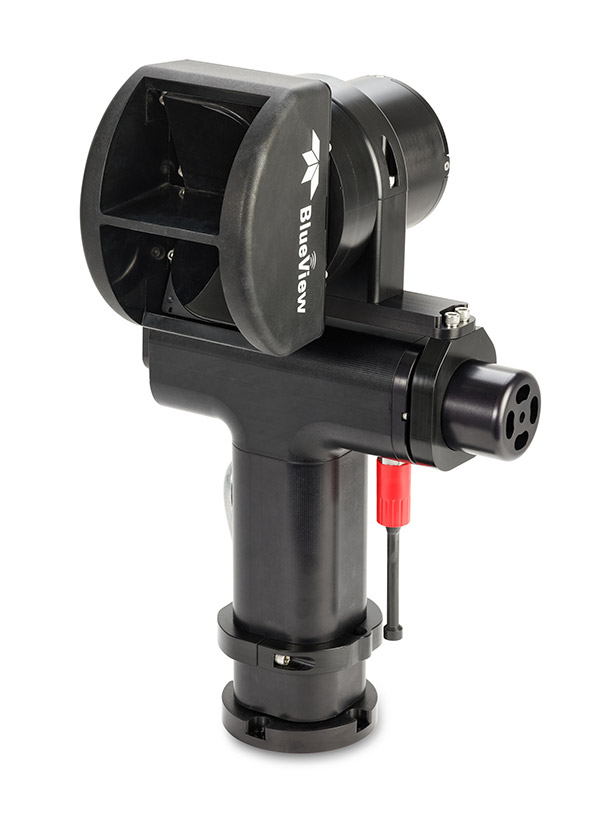

BV5000 3D Multibeam Scanning Sonar by Teledyne
