Product Overview

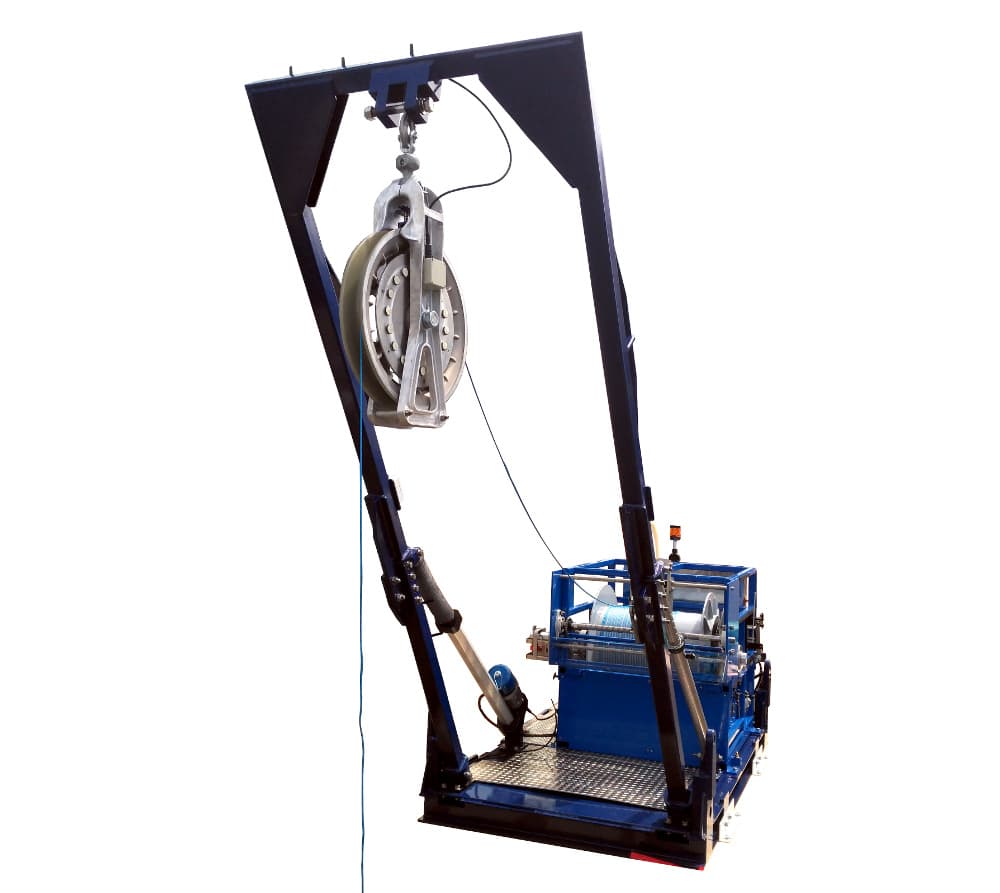

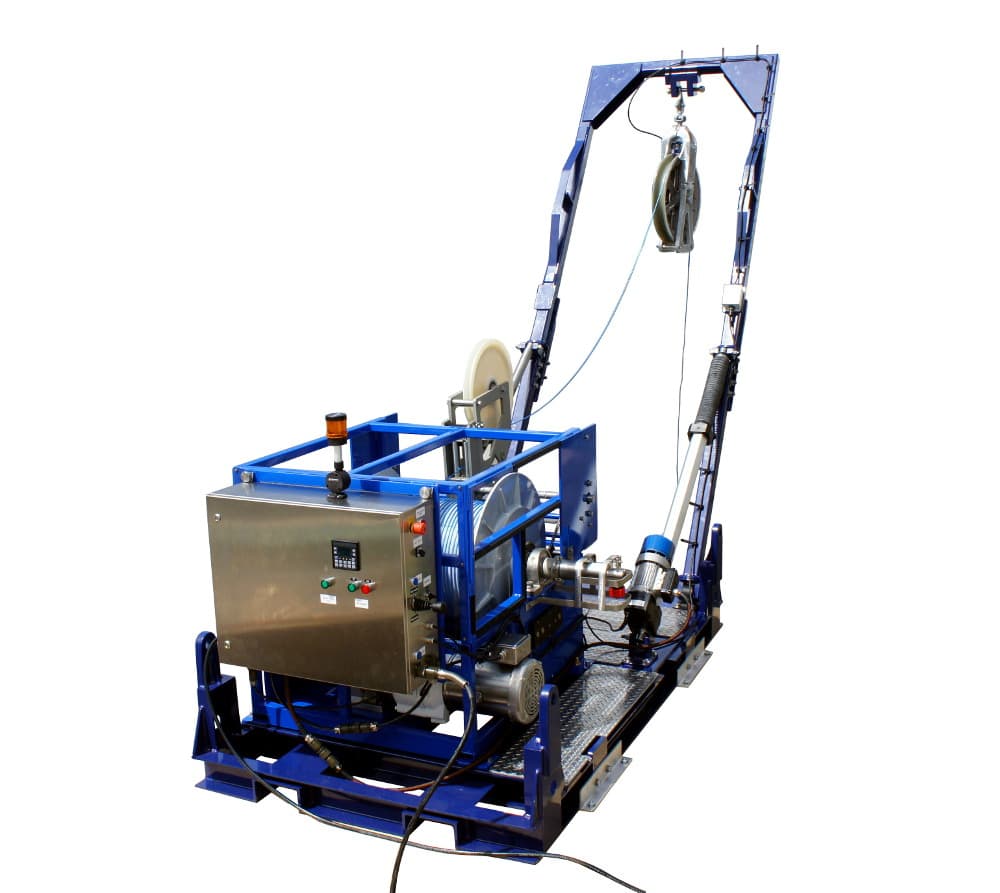

The LAR platform is constructed using 6061-T6 Aluminum structural channel with four lifting point and forklift pocket. The A-frame is constructed using 3” 6061-T6 Aluminum square tubing. Designed to accommodate the CSW and CMW-2 marine winch.


  • Platform size: 60”(1524mm) Wide x 94.5”(2400mm) Length
  • Forklift pocket located at the back of the platform
  • Forklift pocket opening: 16.8” (426.7mm) min to 31” (787.4mm) max
  • Electric actuator with a 1HP Brakemotor for the A-frame

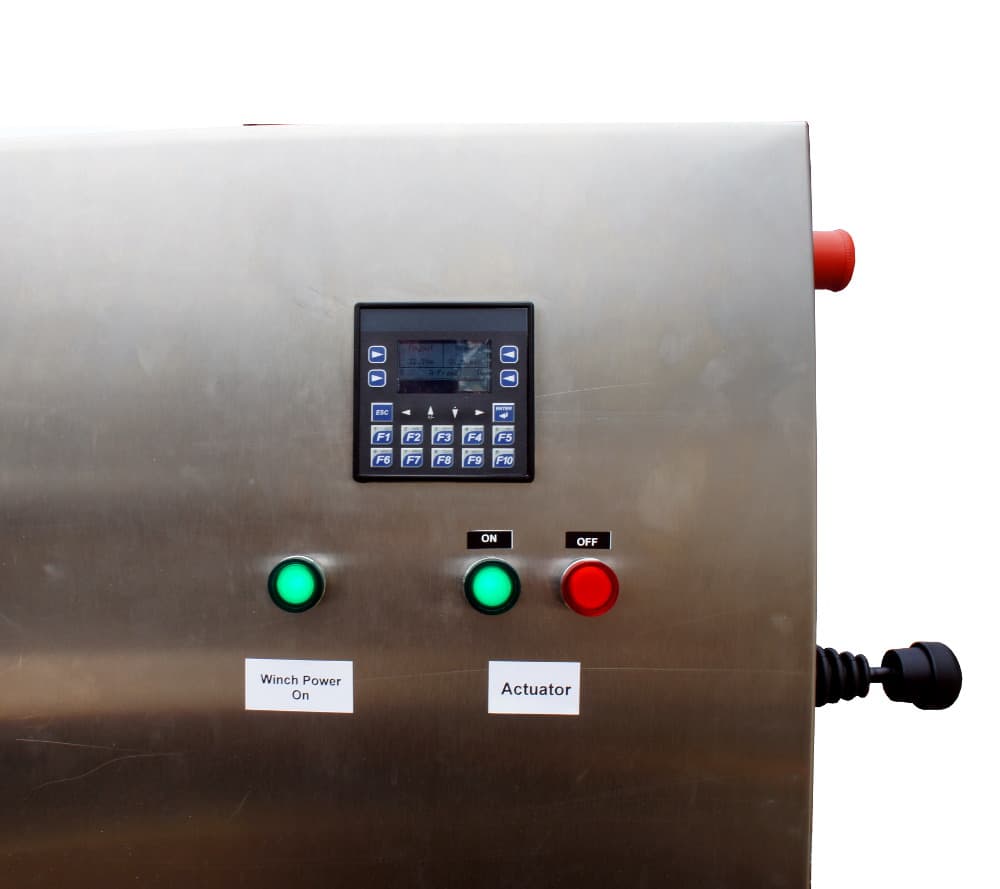

  • Programmable PLC HMI interface for A-frame control and wire counter information on the winch enclosure box
  • 11 pin position passive ram to provide support for the A-frame
  • Four mounting point for deck sacrificial welding bracket
  • Powder-coated 6061-T6 aluminum frame
  • 47.25” (1200mm) over-board reach and 900mm (based on a SR22 snatch block) clearance between the bottom of the sheave and the gunwale
  • Towing SWL: 1200 lbs
  • Lifting SWL: 900 lbs
  • Typical weight: 730lbs to 800 lbs not including the winch

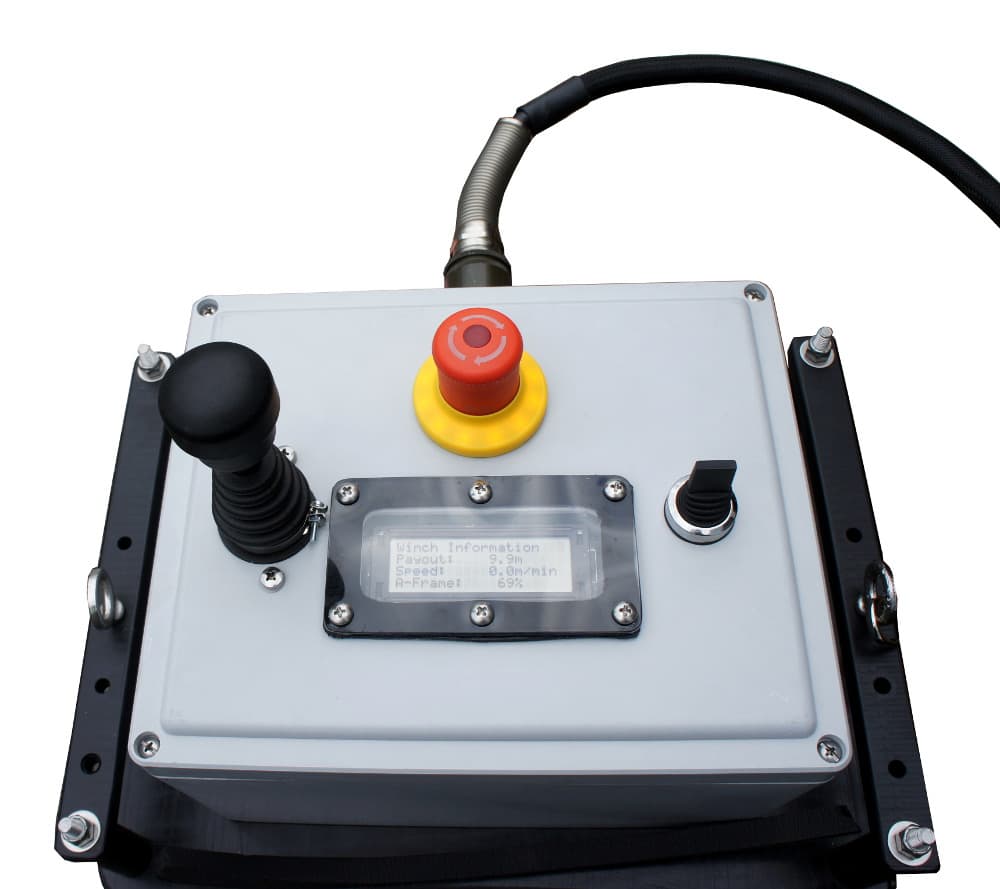

  • An optional joystick remote with A-frame control and wire counter display is available
LAR platform by AGO Environmental
